JAGUAR SKYLOCK

Overlockers

Description

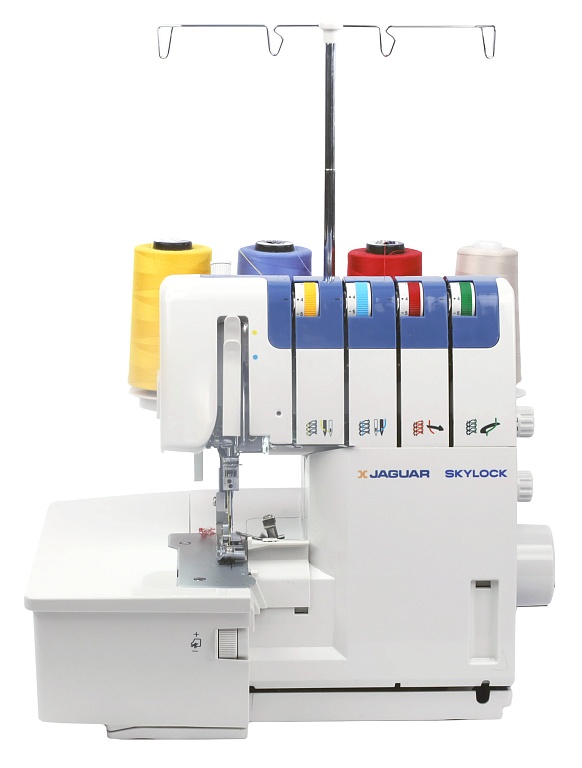

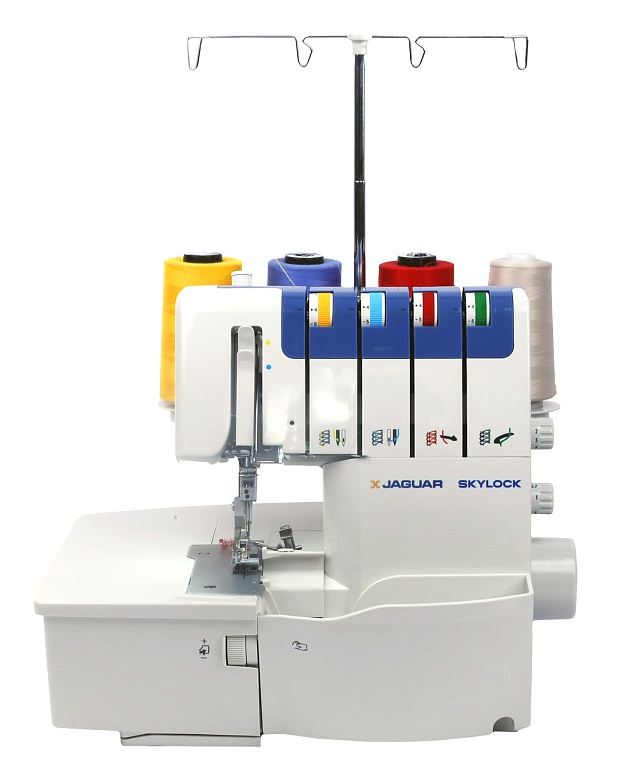

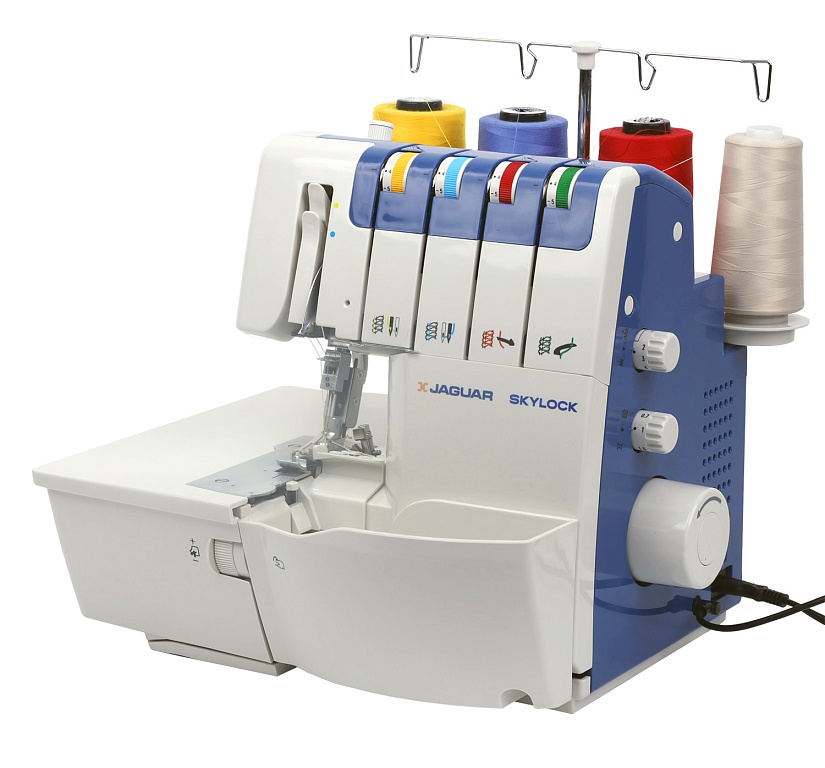

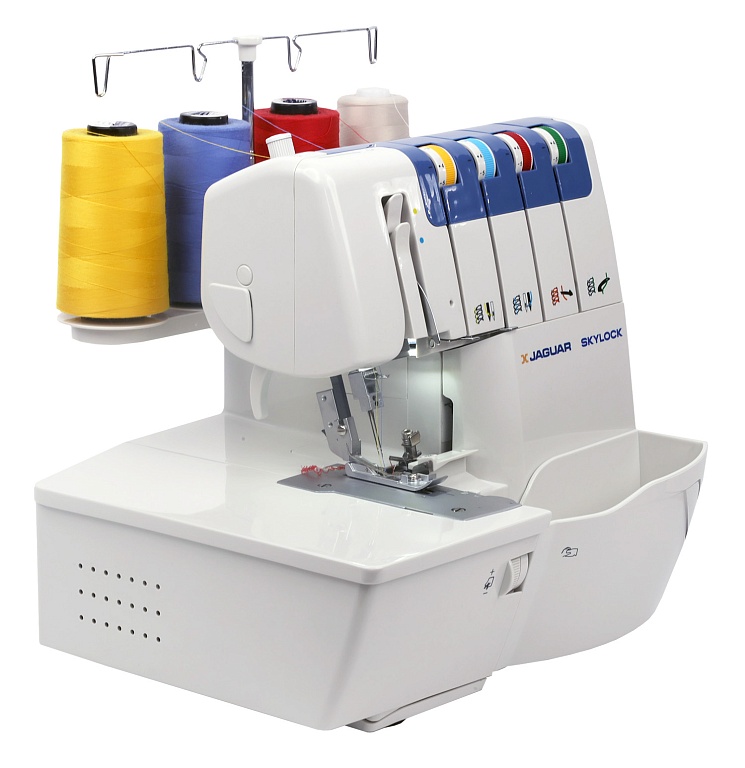

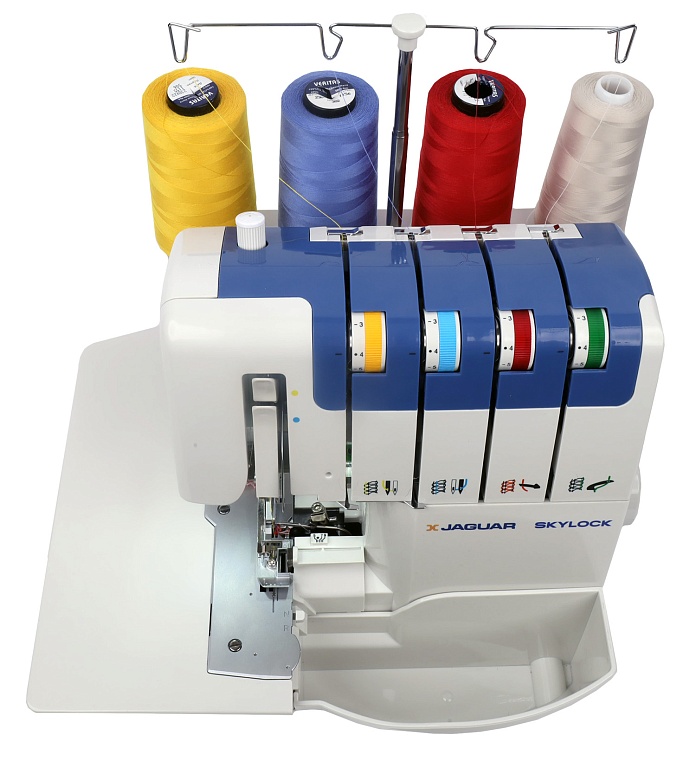

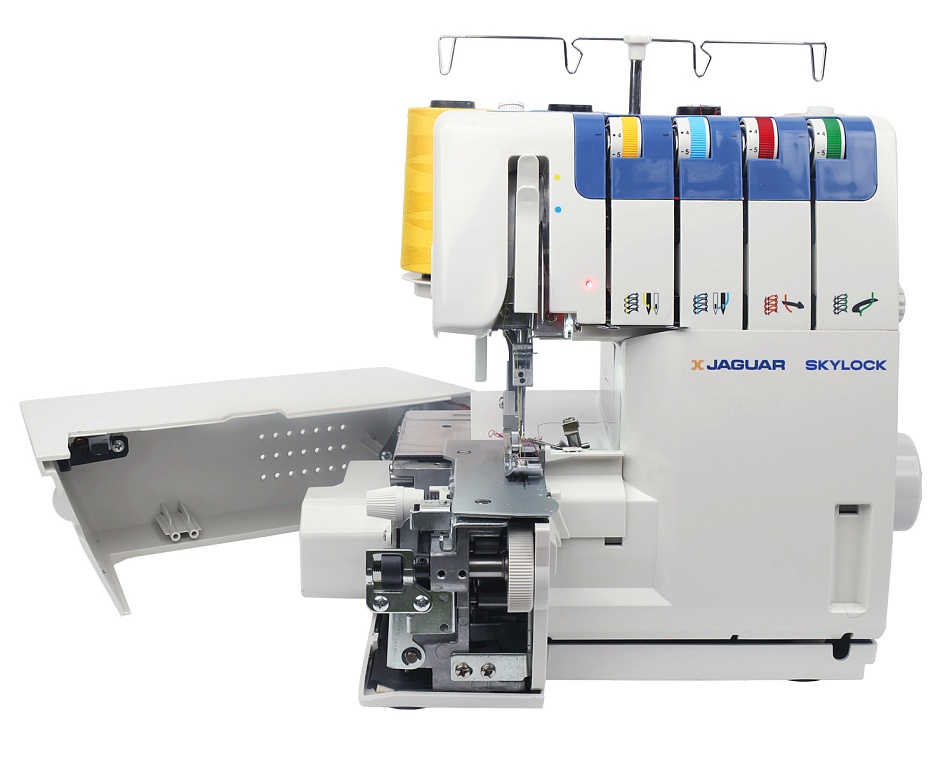

4/3/2-thread JAGUAR SKYLOCK overlock machine with pneumatic looper threading.

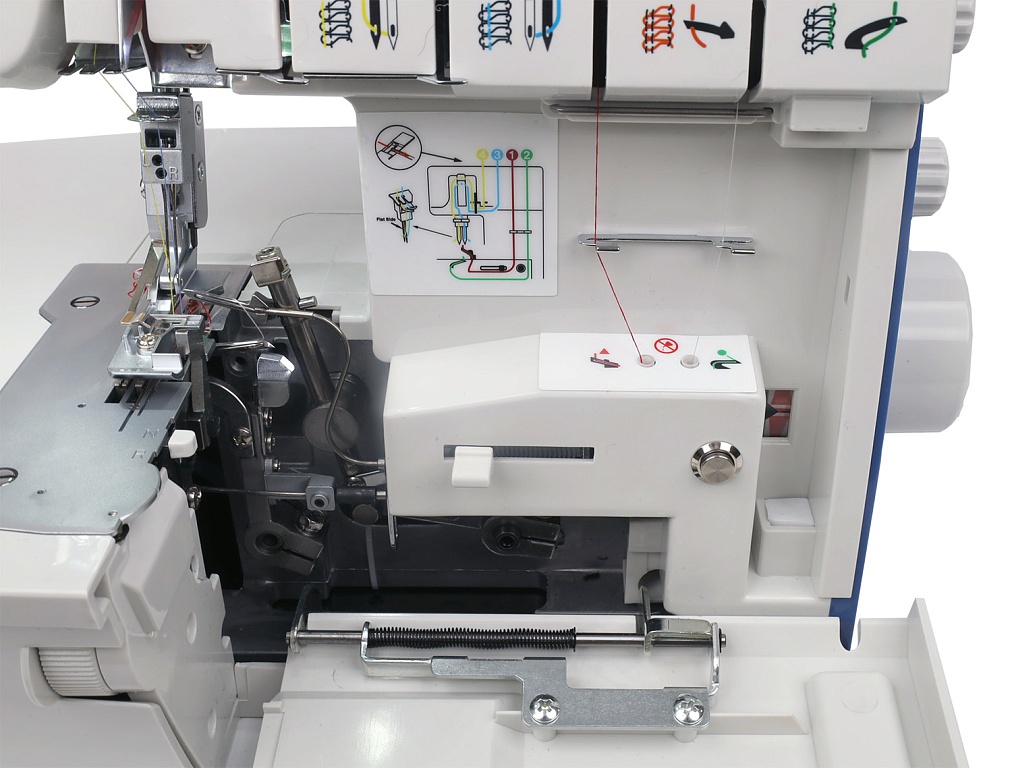

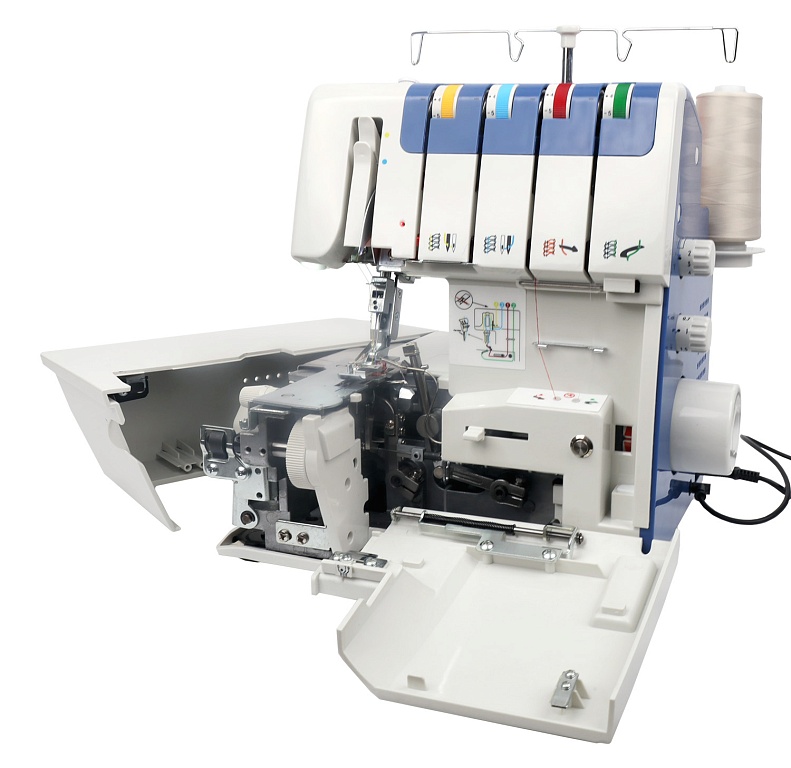

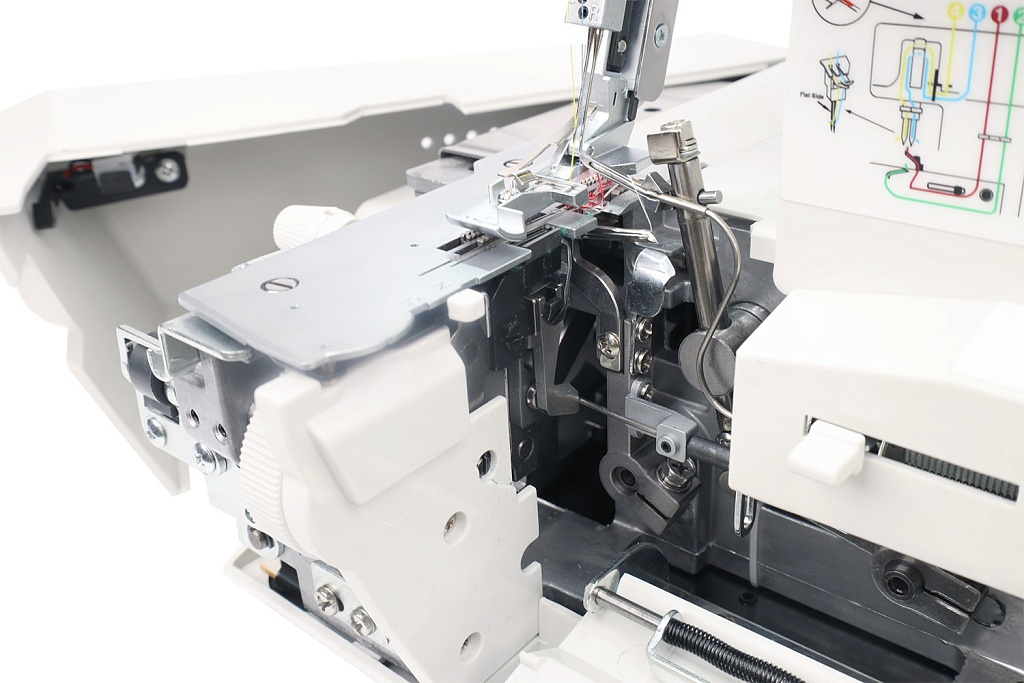

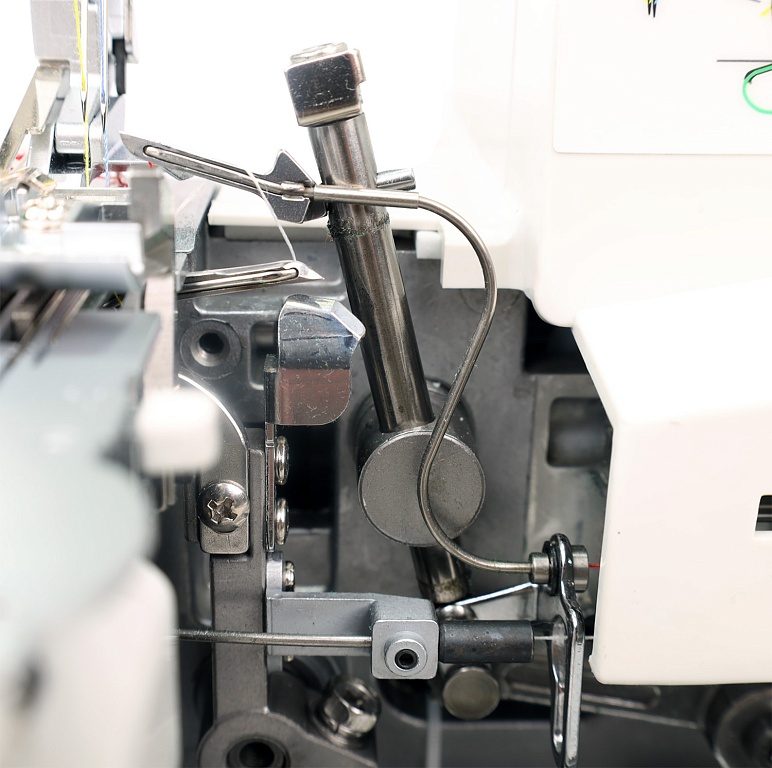

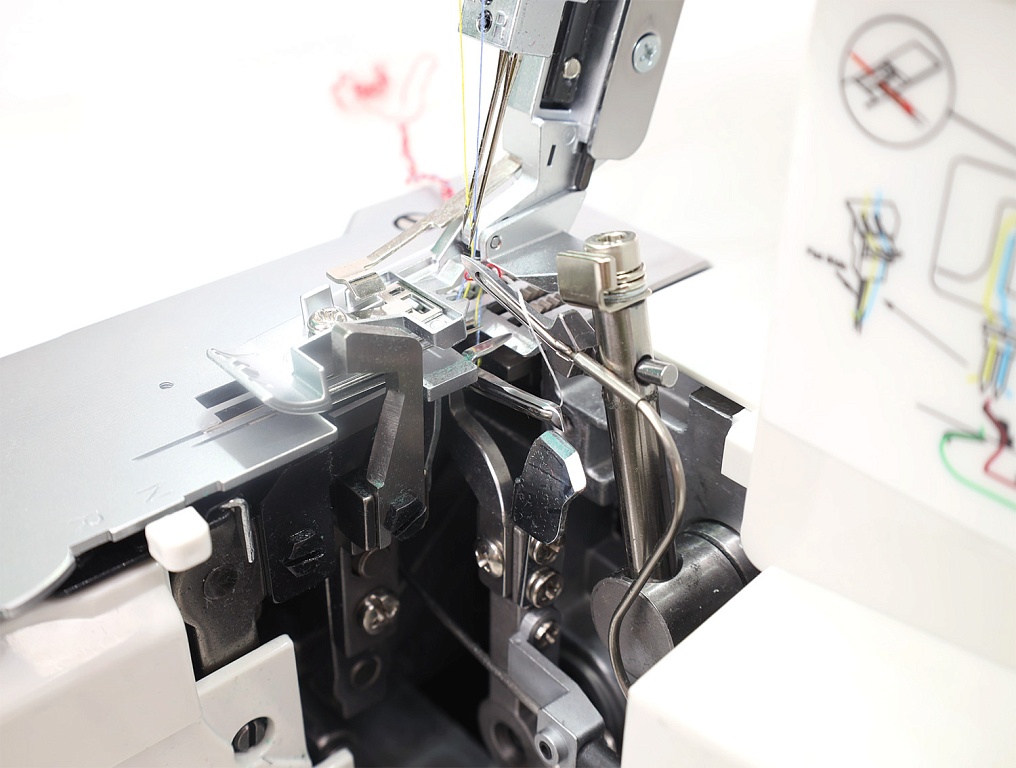

The uniqueness of this overlock machine lies in the quick and convenient threading of the loopers. Press the button, and a powerful air stream will quickly and accurately thread the loopers.

Thanks to the presser foot pressure regulator, the overlock machine works with any type of fabric: chiffon and silk, knitwear and difficult-to-handle stretch materials.

The overlock machine simultaneously finishes the fabric edge, trims it and creates a neat seam.

Maximum seam finishing width — 9 mm.
Stitch length — up to 4 mm.
Number of stitch types — 16.

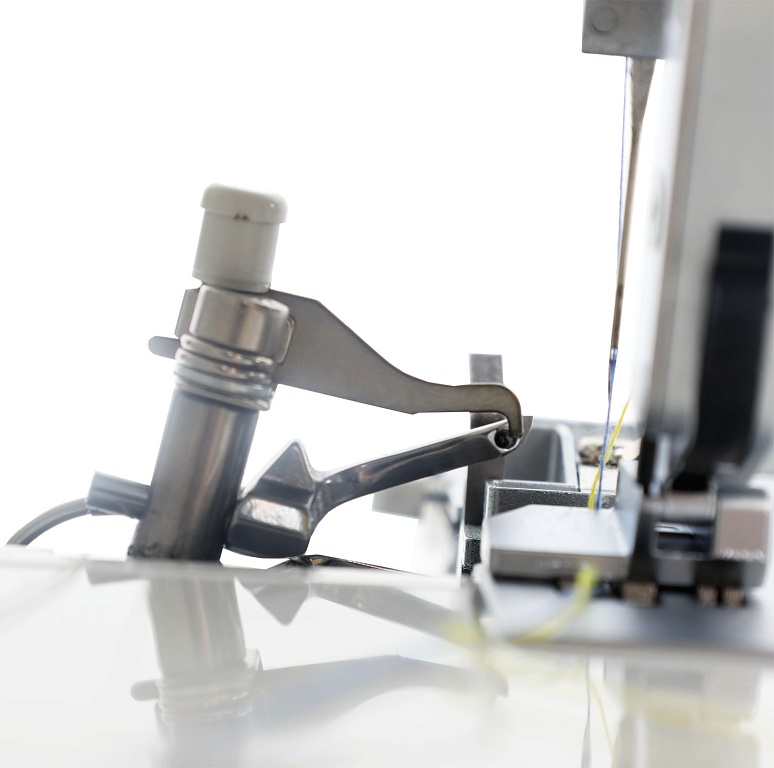

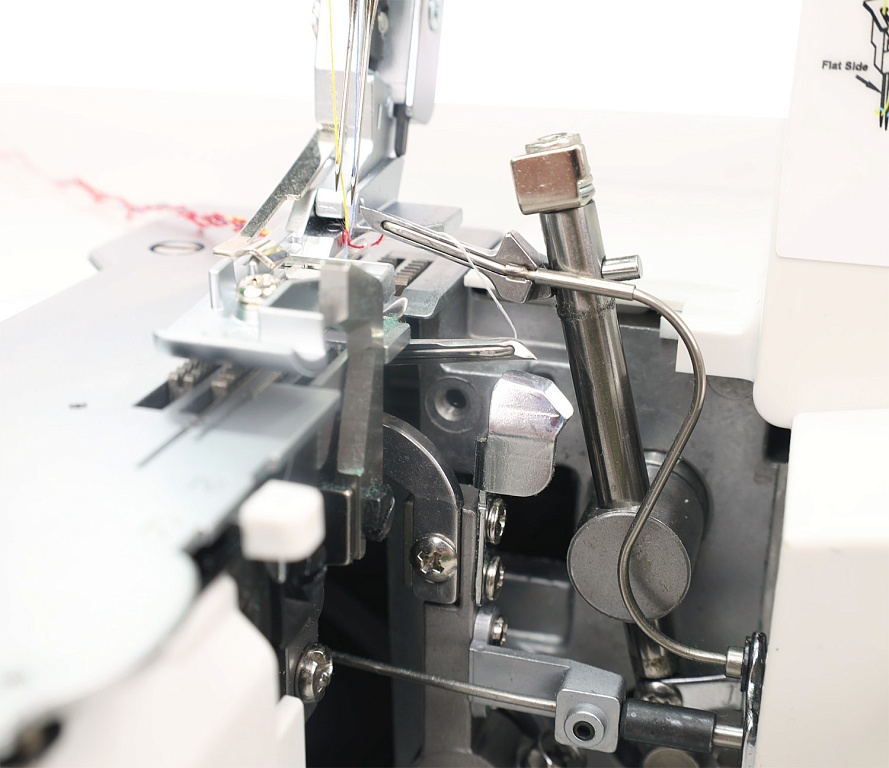

2-thread seams are created using the converter installed on the upper looper.

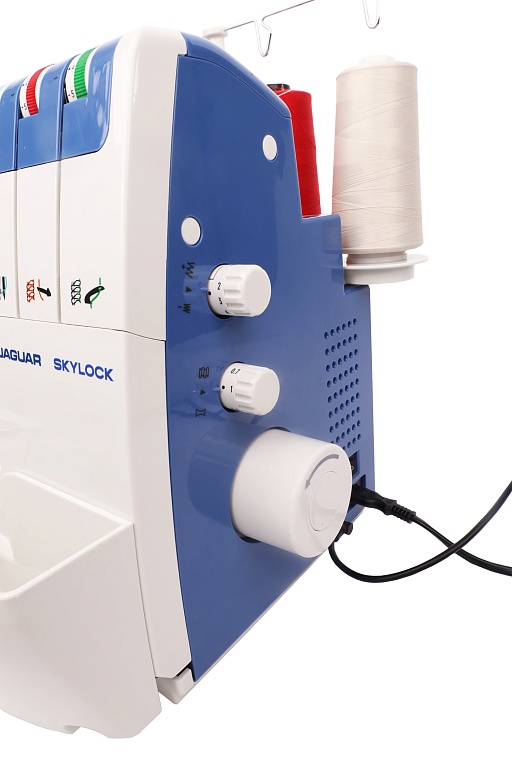

The differential feed regulator helps create gathers on lightweight fabrics. To do this, set the regulator to 0.7. To prevent fabric stretching when processing knitwear or stretch materials, set the differential feed regulator to a value above 1, closer to 2.

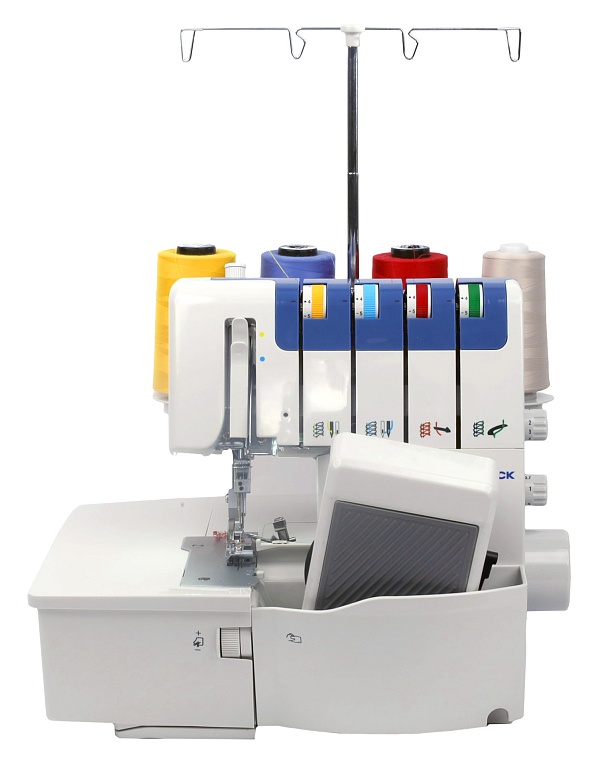

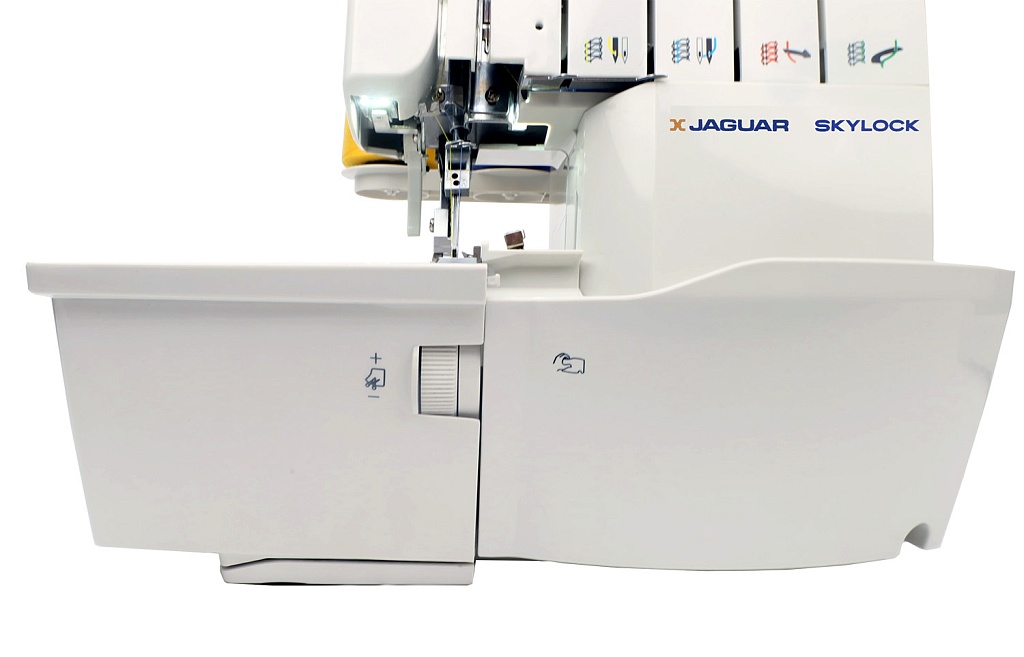

A large and convenient waste collector is an essential accessory when working with an overlock machine. It keeps the workplace clean and tidy by collecting trimmed fabric scraps. The material can be processed without trimming the fabric.

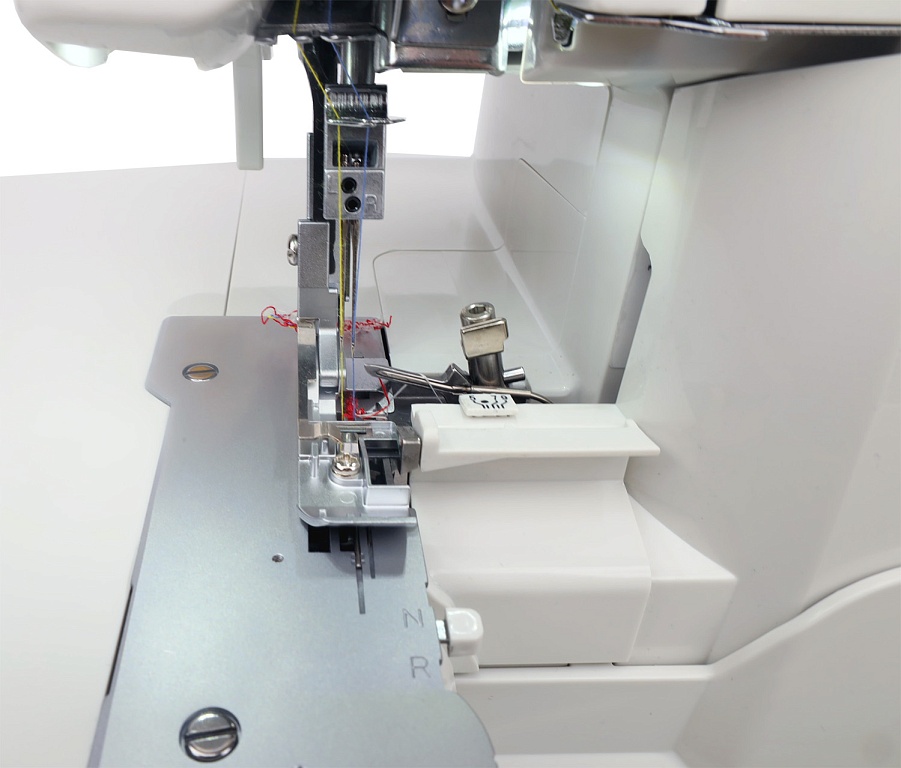

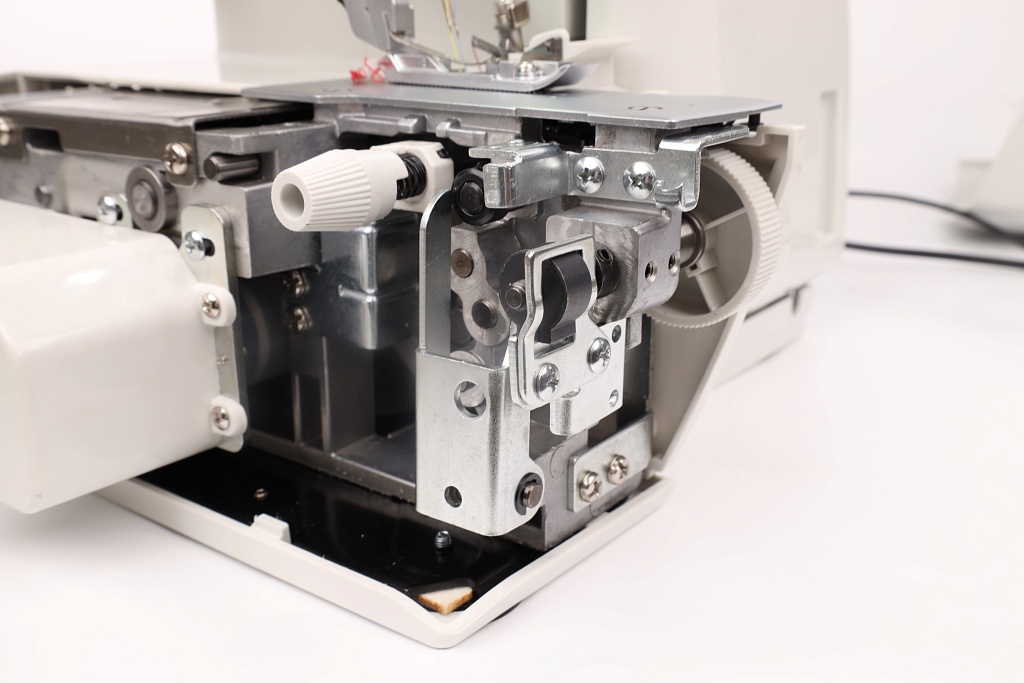

The overlock machine features an upper knife disengagement regulator. The knife is fixed in the lower position. A spare upper knife is included.

The powerful, reliable and unique JAGUAR SKYLOCK overlock machine creates decorative 3/2-thread flat seams (Flatlock).

A safety system is provided: it prevents operation from starting while the looper compartment cover and left side panel are open or the presser foot is raised. Thanks to its extensive functionality, the machine will appeal to beginners and sewing enthusiasts.

The JAGUAR SKYLOCK overlock machine is essential for those who sew a lot and with pleasure. It is easy to thread.

Become the happy owner of a modern multifunctional overlock machine!

Functions

Main characteristics

Stitch length: 0.8–4 mm.
Overedge width: 1.5 to 9 mm.
Differential fabric feed: 0.7–2.0.
Presser foot pressure regulator: yes.
Upper knife disengagement: fixed in the lower position.
Convenient thread insertion: into the lower looper.
LED lighting: 6 LEDs.
Maximum sewing speed: 400–1200 stitches/min, depending on the pressure applied to the pedal.
Maximum presser foot lift: up to 6 mm.

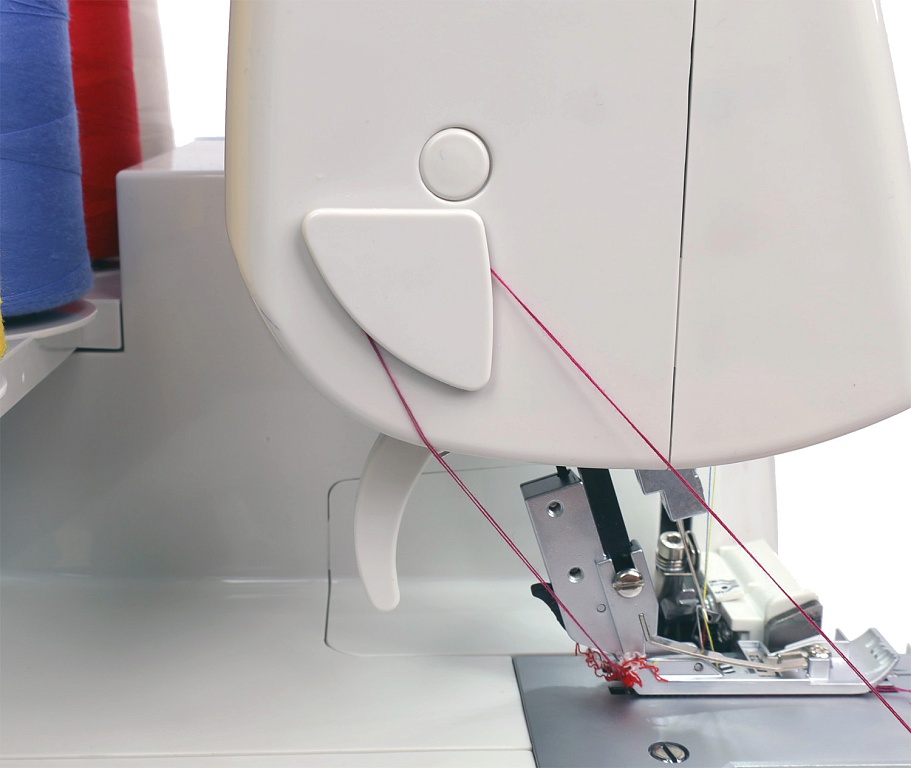

Thread cutter: built-in.

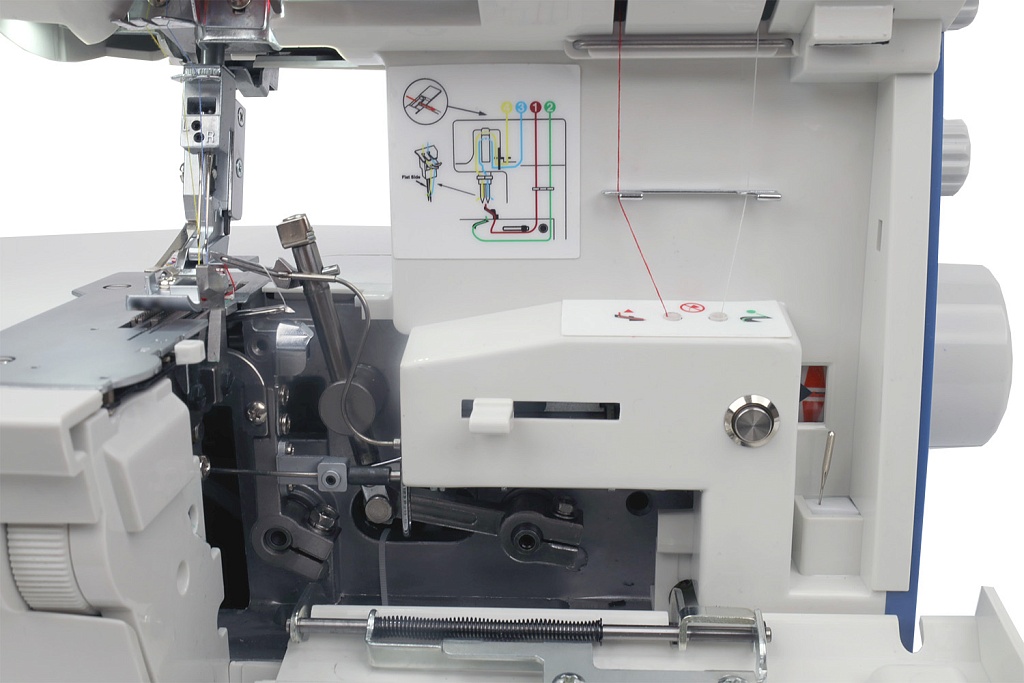

Looper threading: pneumatic.
Automatic pneumatic looper threading start: by button.
Tube switch: for pneumatic threading of the upper and lower loopers with air.
Seam width from the left needle: 5–9 mm.
Seam width from the right needle: 3–7 mm.
Safety system: when the looper compartment cover is open, the presser foot is raised or the left side cover is open, the pedal lock is activated.

Stitch types

4-thread seaming-overedge.
3-thread stretch.
3-thread wide.
3-thread narrow.
3-thread narrow flat (Flatlock).
3-thread rolled hem.
3-thread overedge.
3-thread rolled seam.
2-thread wide.
2-thread narrow.
2-thread wide flat (Flatlock).
2-thread narrow flat (Flatlock).
2-thread rolled hem.
2-thread overedge.
2-thread rolled seam.

General information

Power: 100W.
Country of manufacture: China.
Gross weight: 12.1 kg.
Net weight: 9.4 kg.

Accessories

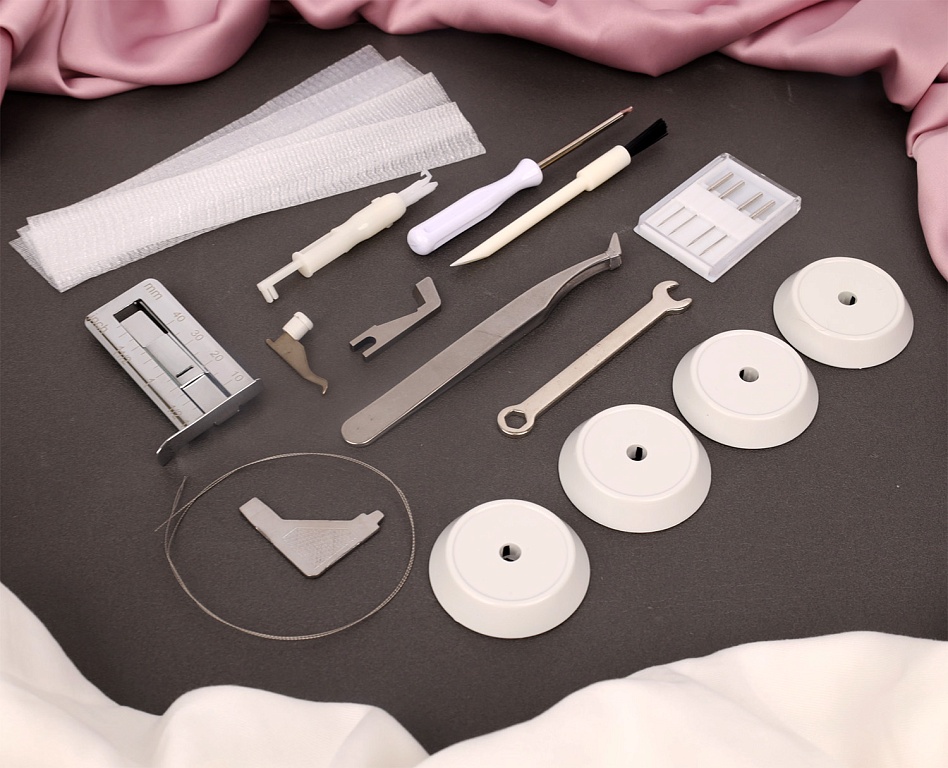

Standard equipment

Dust brush.
1.5 mm screwdriver for changing needles.
Tweezers.
Converter.
Needle threader/needle holder (manual).
Auxiliary needle threader (wire).
Spare upper knife.
Knife replacement wrench.
Screwdriver-wrench.
ELx705 needles.

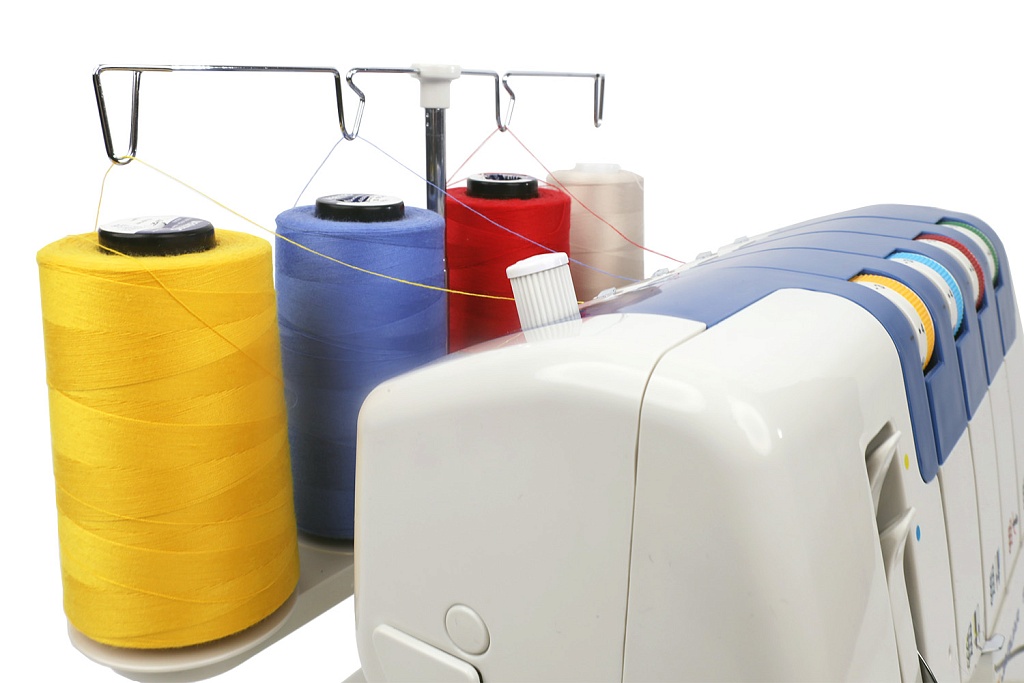

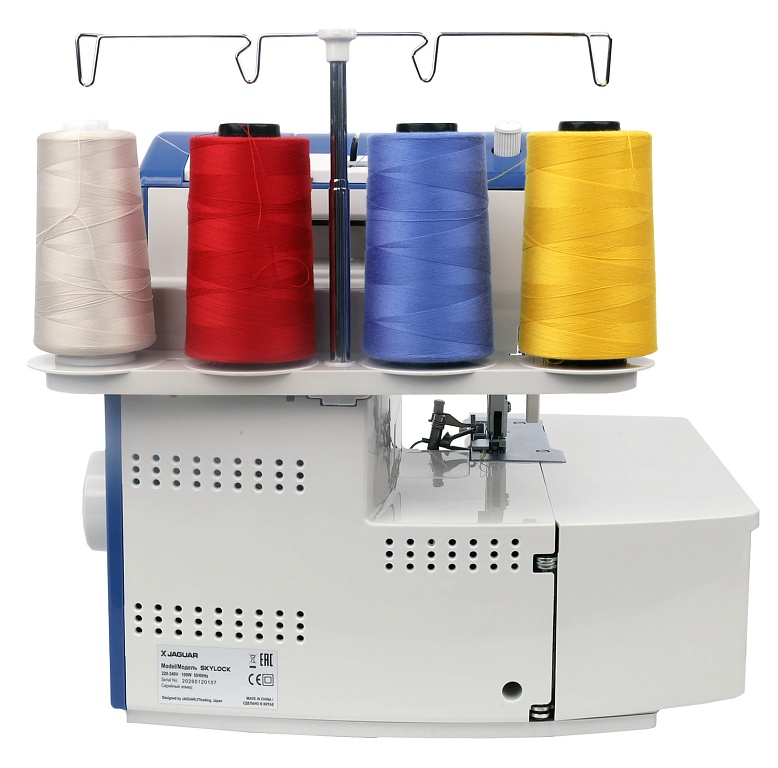

Spool holders — 4 pcs.
Accessory case.
Spool nets — 4 pcs.
Fabric guide.

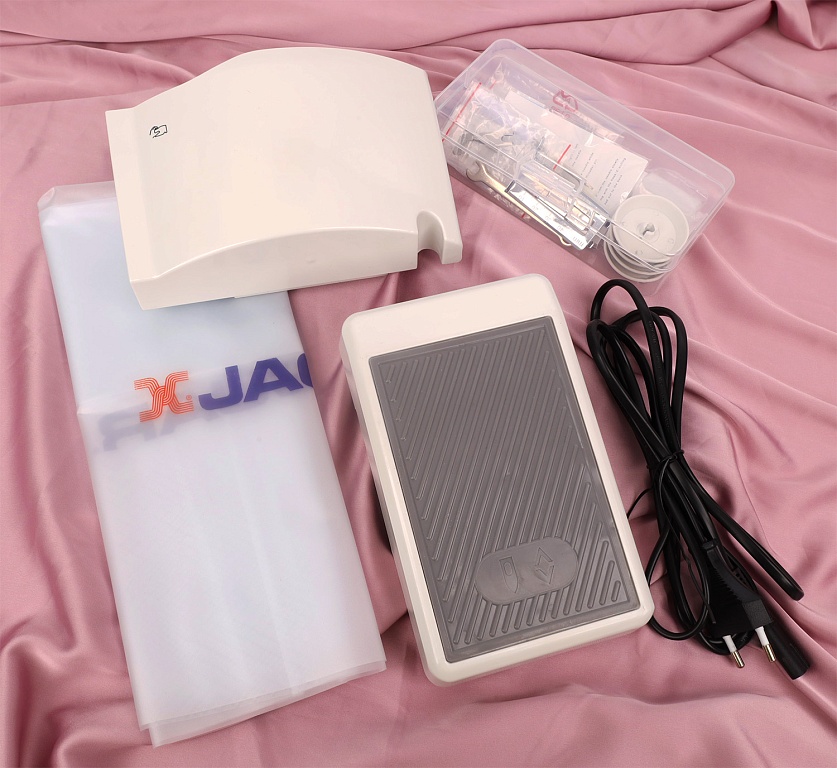

Standard equipment

Waste collector.
Soft cover.
Power cord.

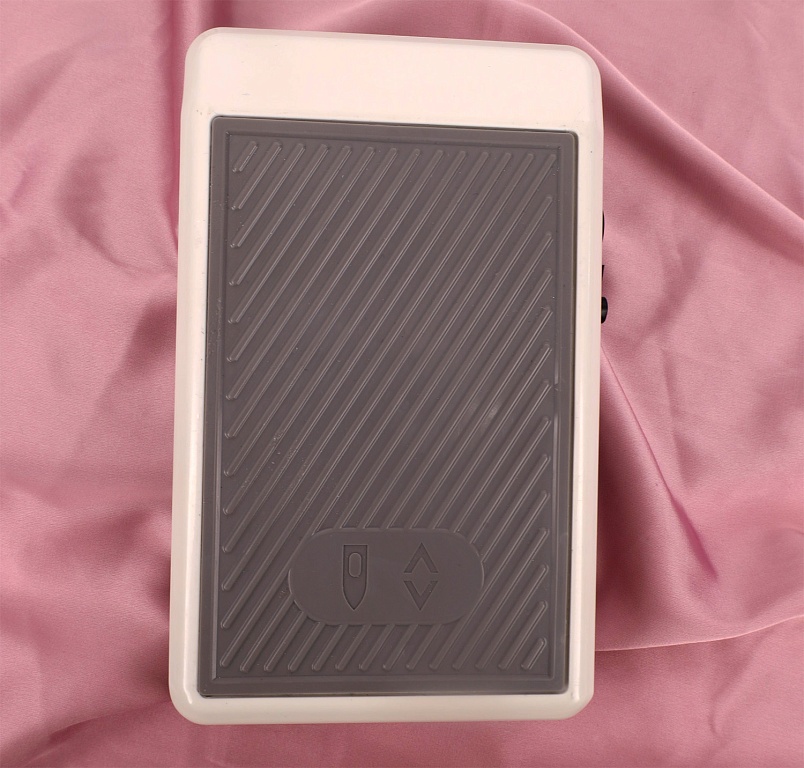

Foot pedal.
Instruction manual.
