JAGUAR POWER FABRIQ 23А

Description

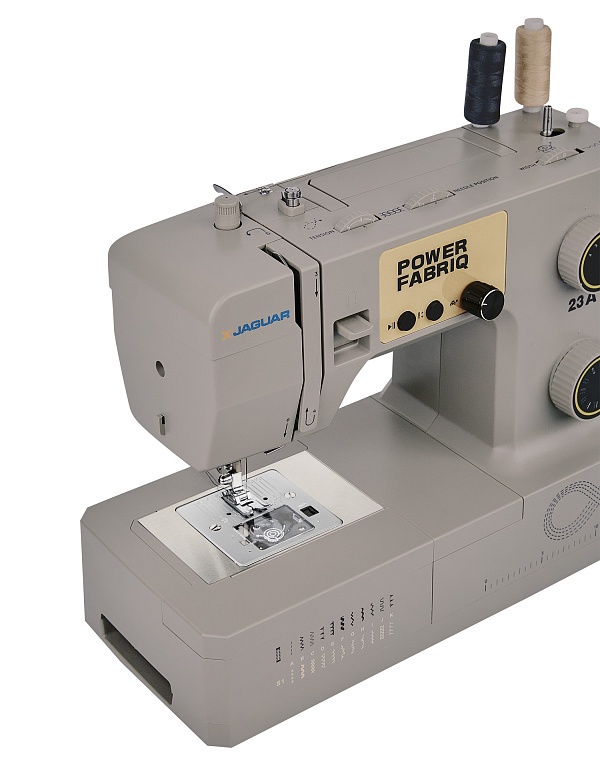

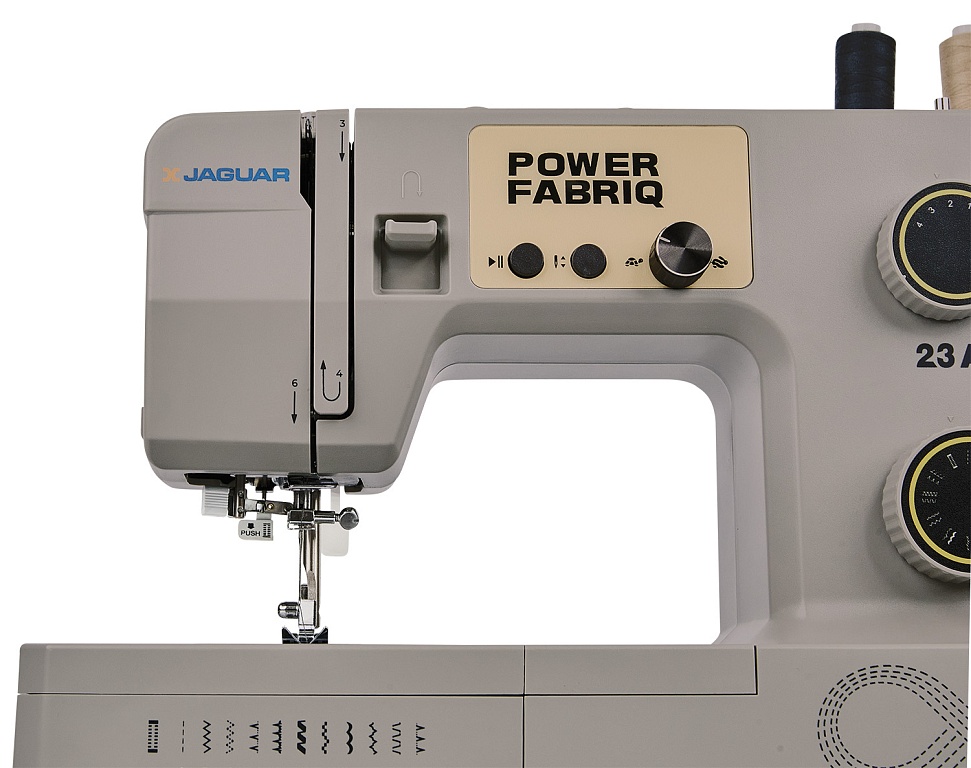

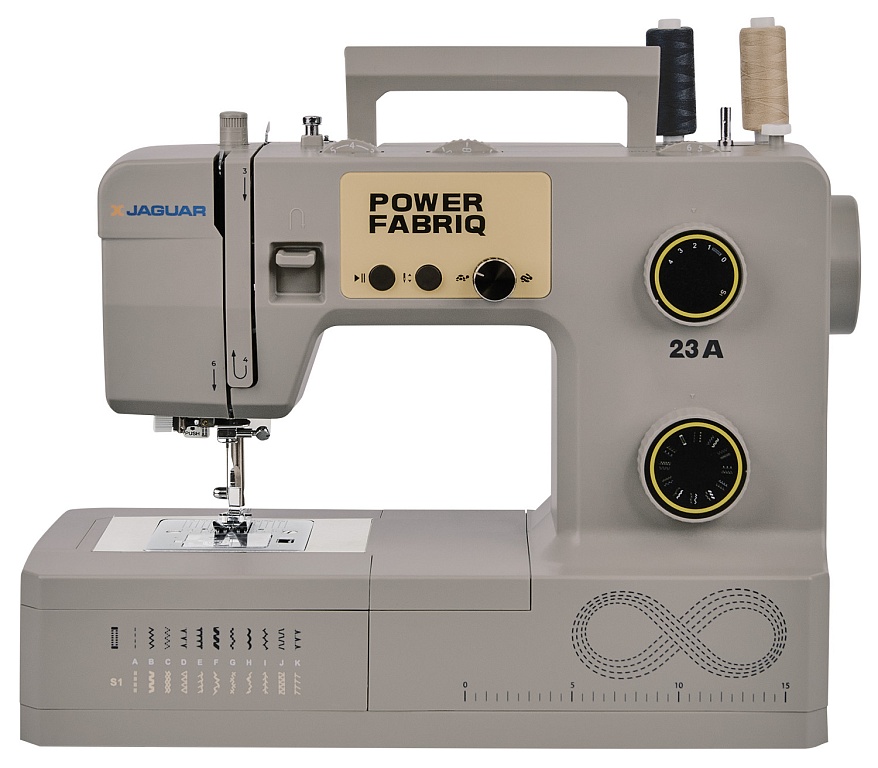

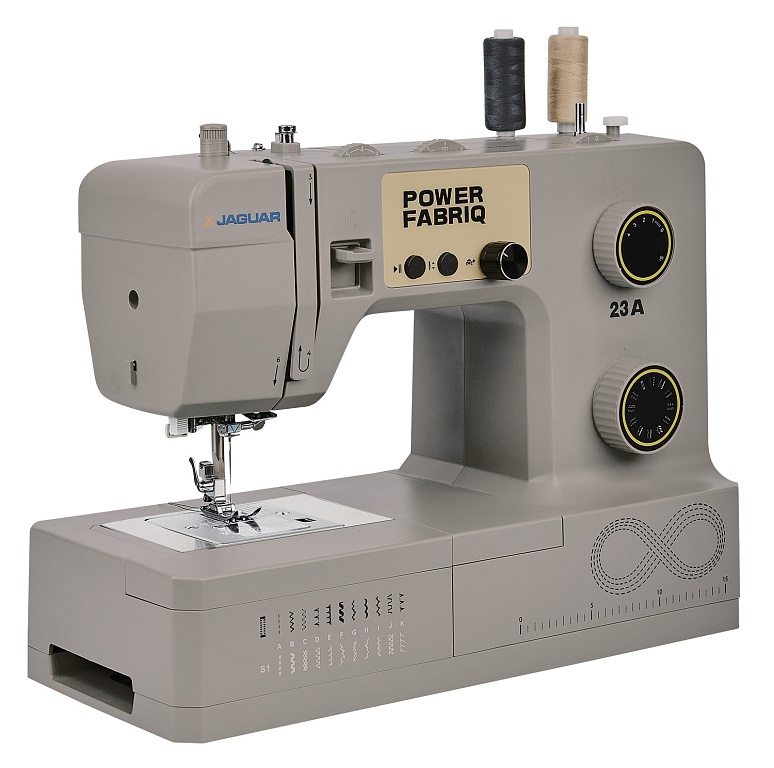

JAGUAR POWER FABRIQ 23A — a powerful electronic sewing machine with a power rating of 100 W, a built-in servo motor, and enhanced needle penetration.

Using the regulator, you can set the maximum sewing speed — 800 stitches/min.

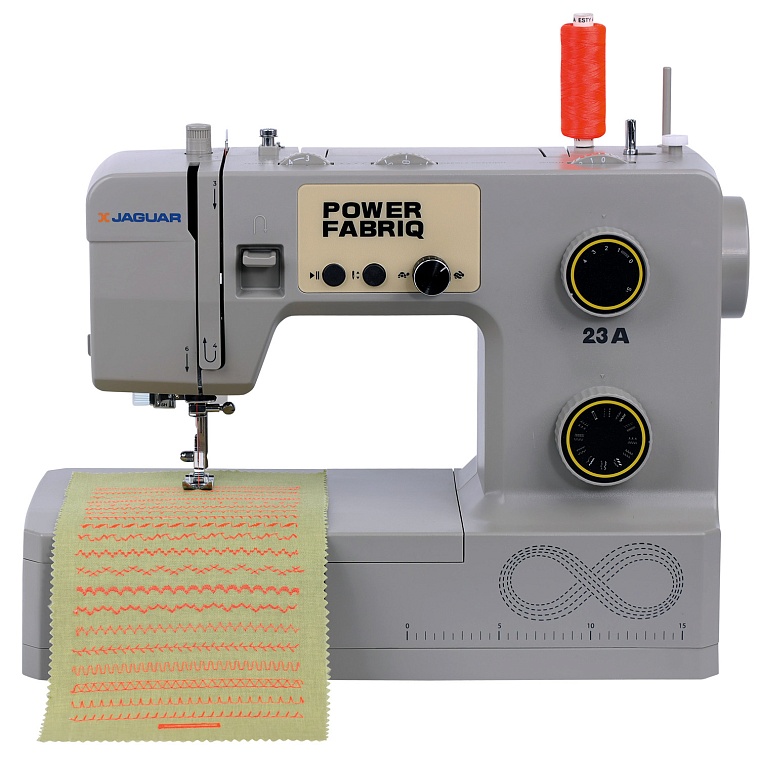

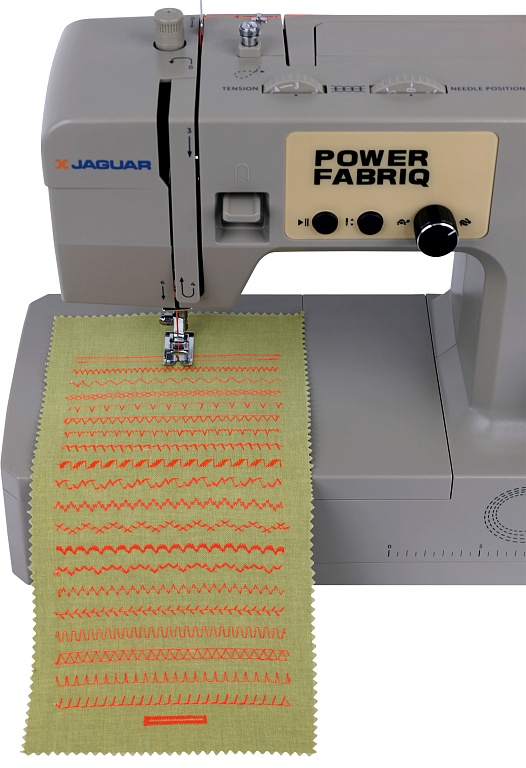

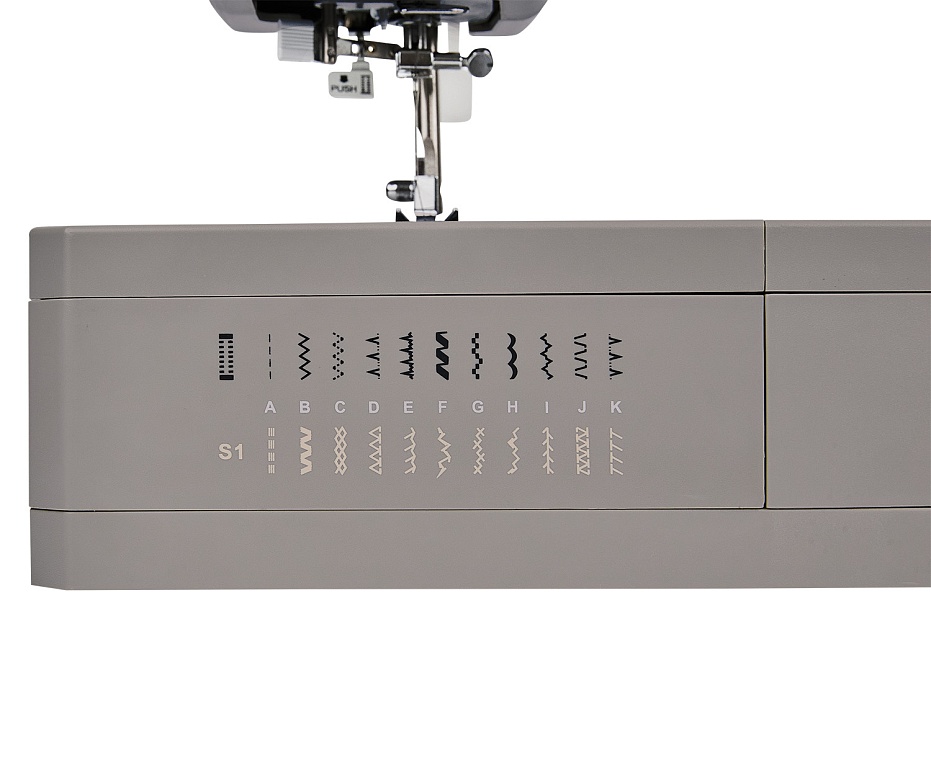

The machine offers 23 sewing operations:

• utility;
• knit;
• overlock;
• elastic zigzag;
• blind;
• decorative;
• quilting stitches;
• automatic buttonhole.

For comfortable operation, the machine is equipped with all the necessary functions. The buttonhole balance regulator changes the stitch density of the buttonhole. The needle positioning button allows you to fix the needle in the down position when sewing stops and hold the fabric in place.

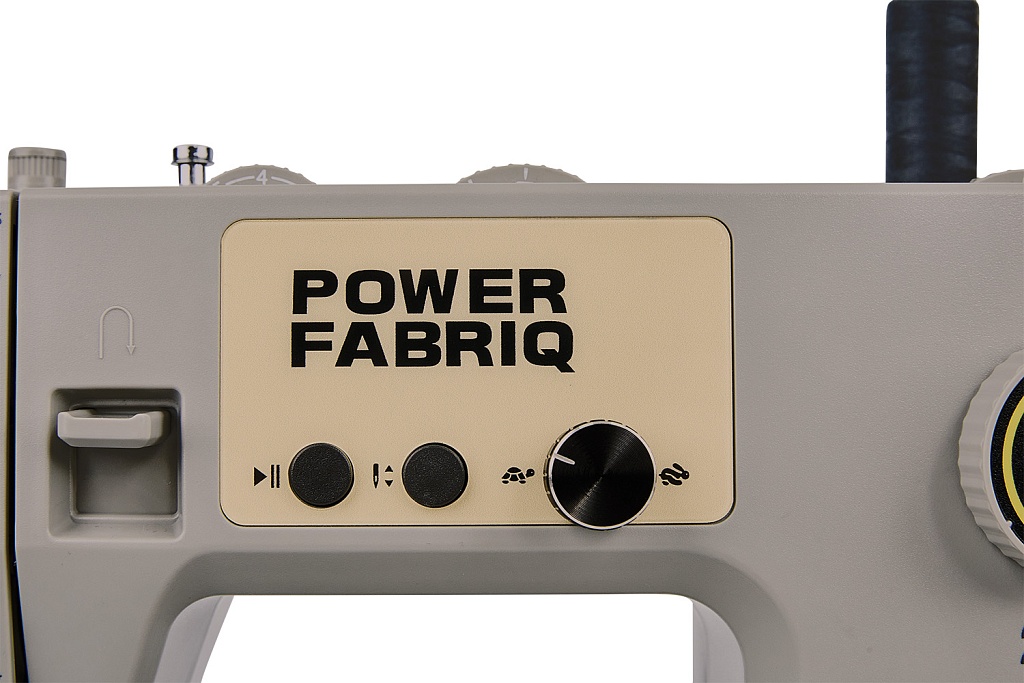

The JAGUAR POWER FABRIQ 23A model allows you to sew without a foot controller — using the “Start/Stop” button.

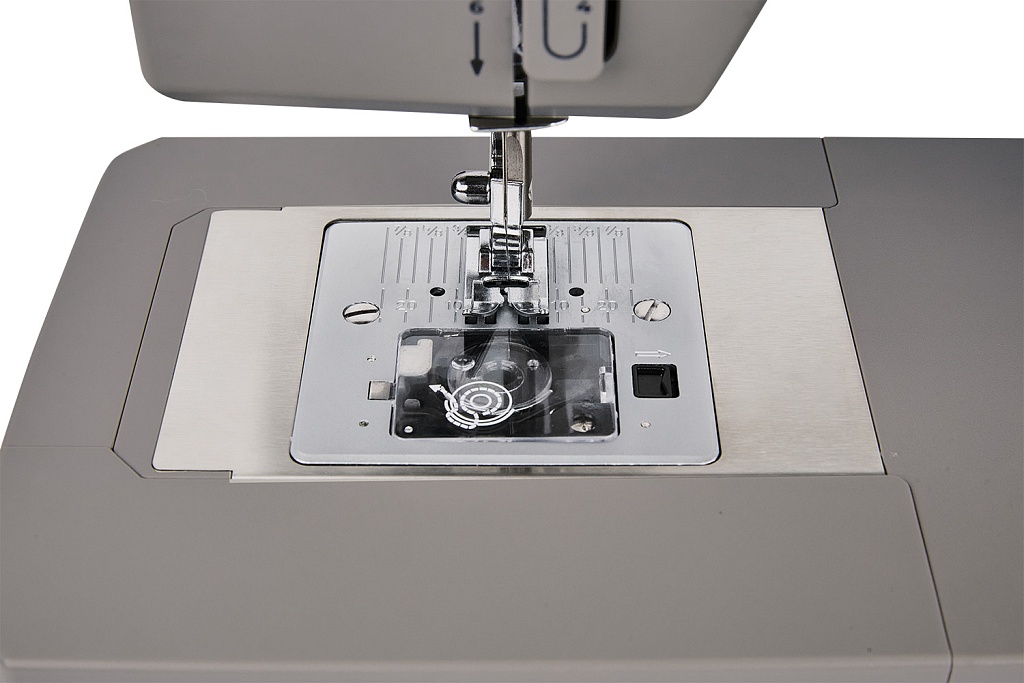

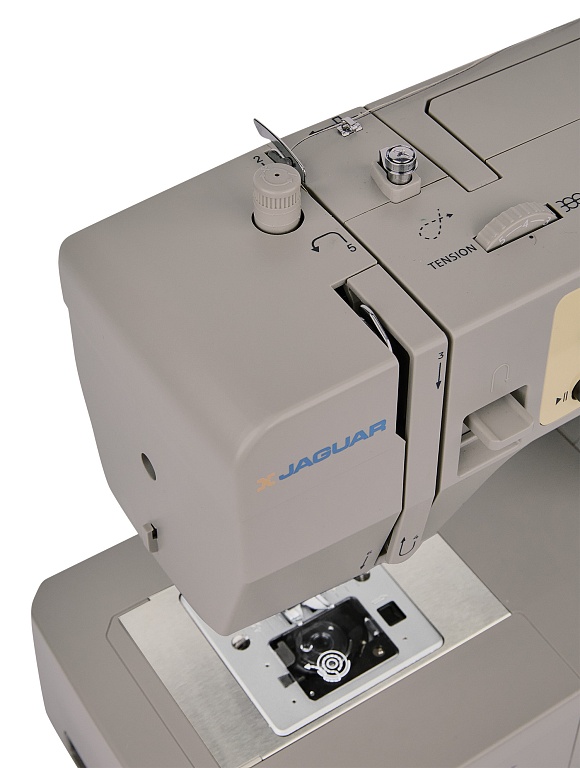

Thanks to the horizontal rotary hook, threading is quick and convenient. The remaining bobbin thread can be easily monitored while sewing. At the same time, the machine provides quiet and smooth operation.

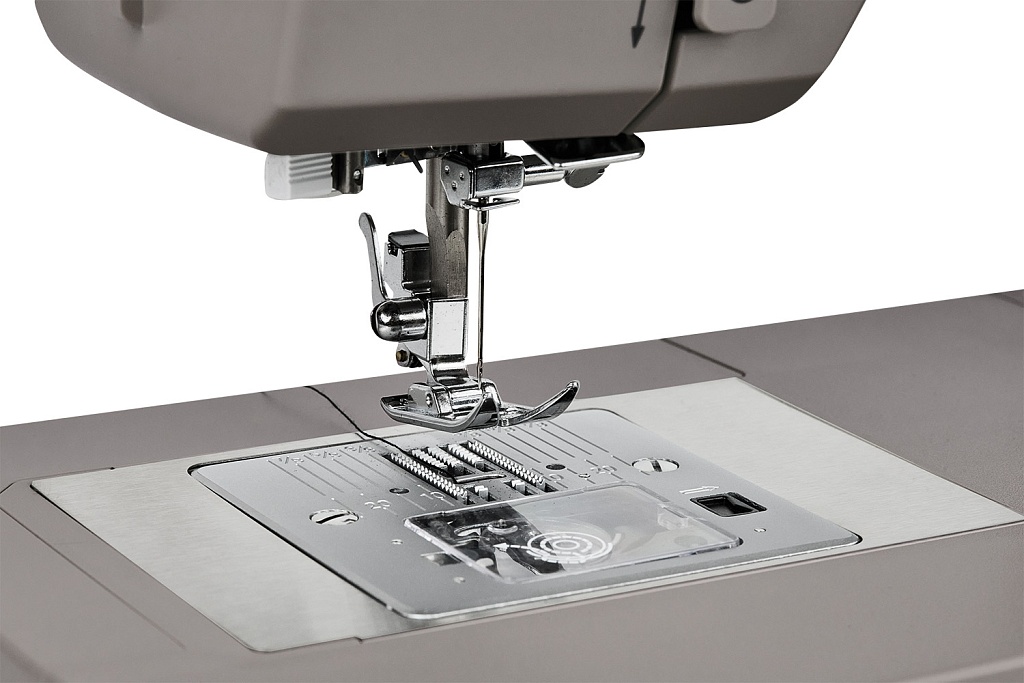

The presser foot pressure regulator allows you to sew heavy and denim fabrics. Reliable fabric feeding is provided by the 7-segment feed dog.

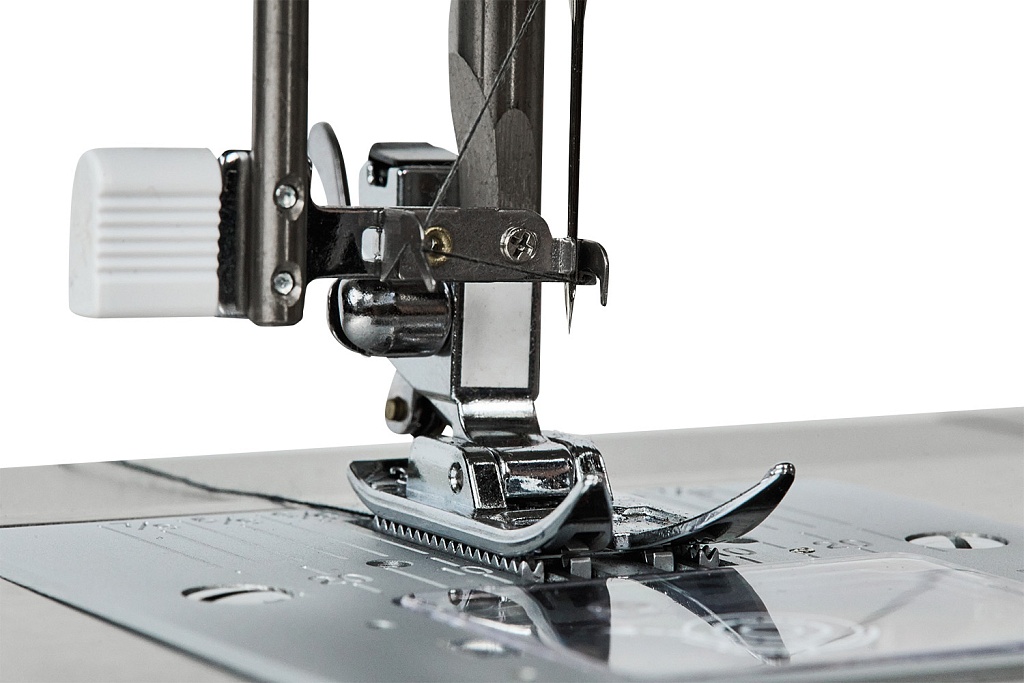

For sewing difficult sections in thick side seams, such as trouser seams, the set includes a special plate installed under the main presser foot. It compensates for differences in material thickness and prevents skipped stitches.

JAGUAR POWER FABRIQ 23A is a unique model that is easy to operate, reliable, and convenient, with a built-in needle threader.

The machine provides high-quality stitching on elastic fabrics: it looks perfect, just like on industrial machines.

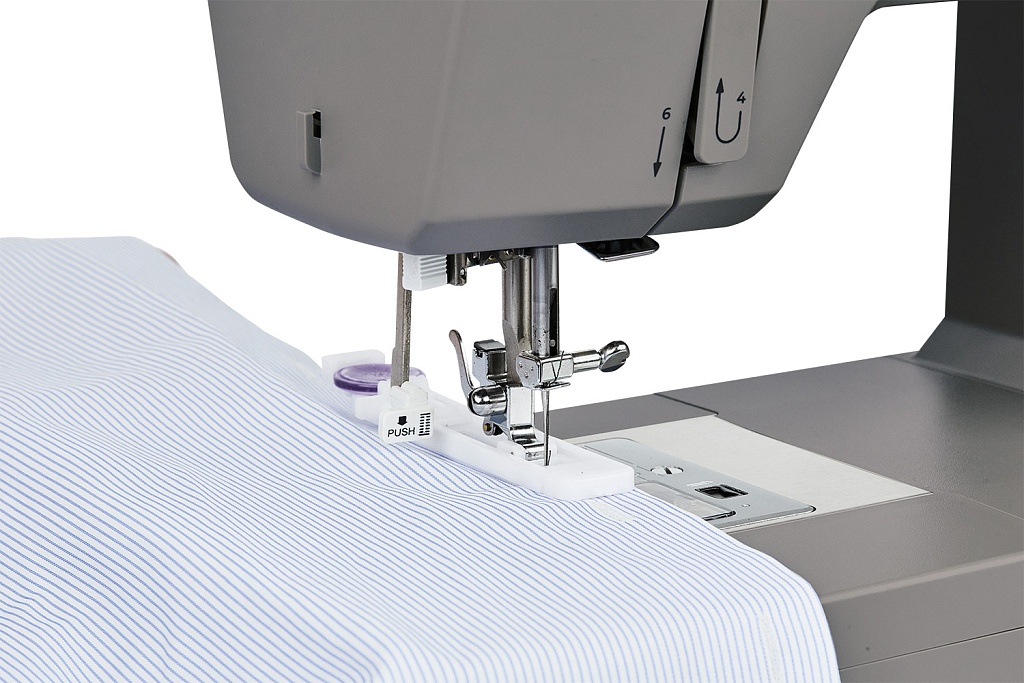

Buttonholes are sewn automatically.

To sew on buttons and quilt using the free-motion technique, the feed dog must be lowered.

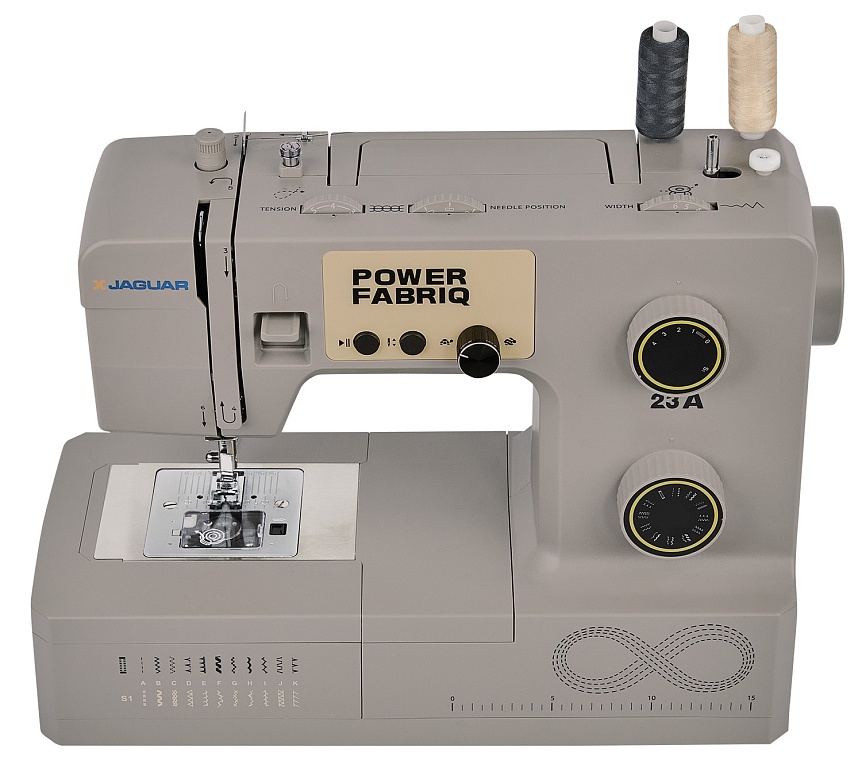

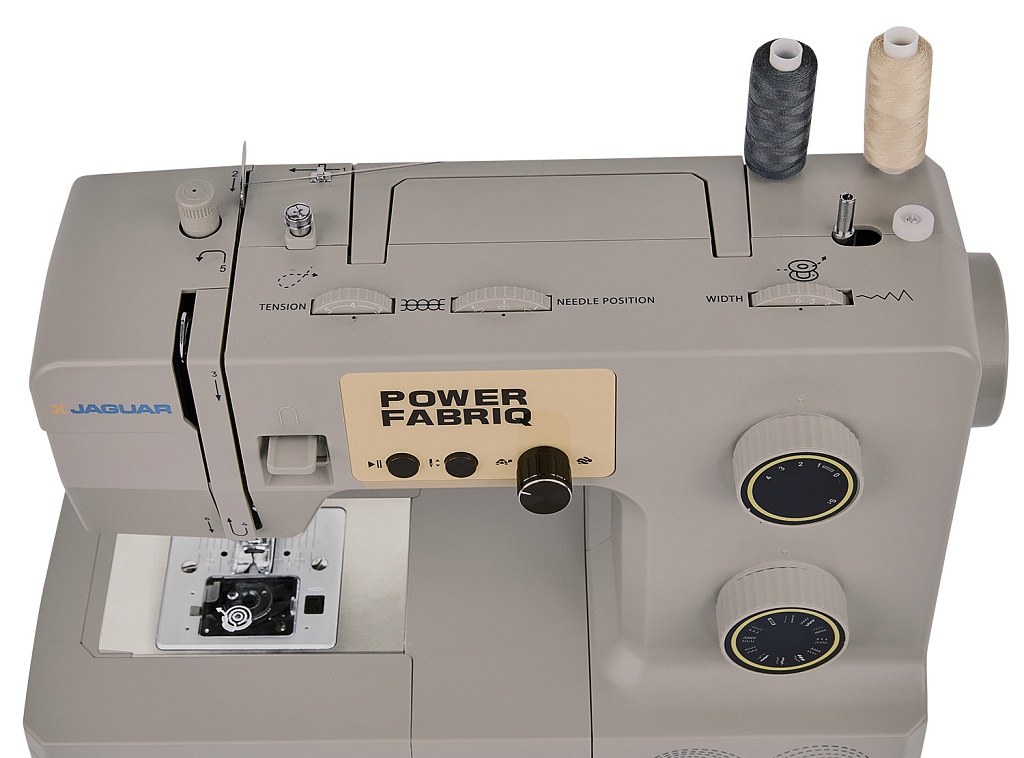

A needle position regulator is located on the machine's top panel. It is used to create a stitch along the edge of the fabric with the needle positioned to the left or right relative to the center of the presser foot.

Using the second spool pin, you can sew with a twin needle.

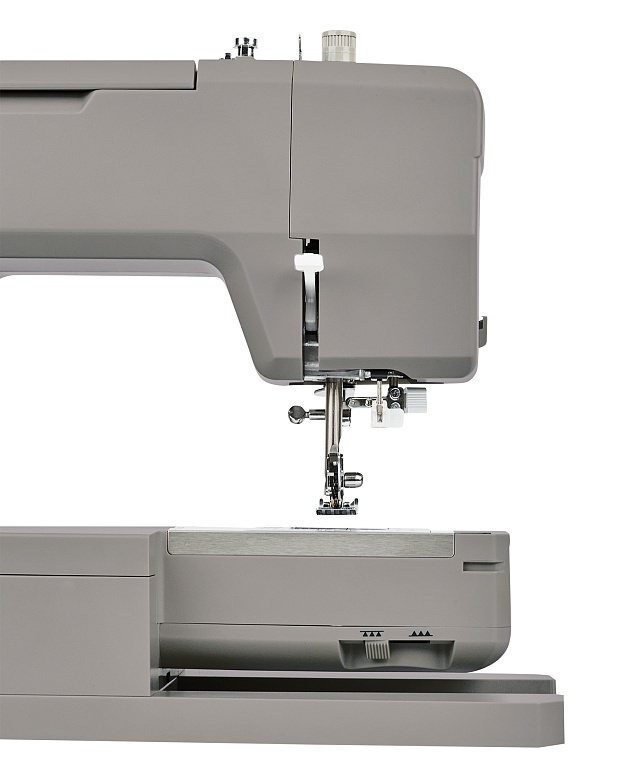

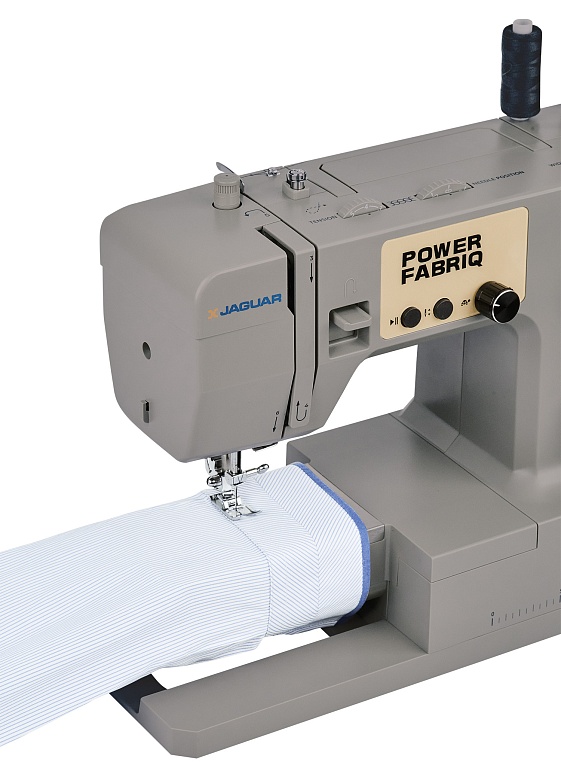

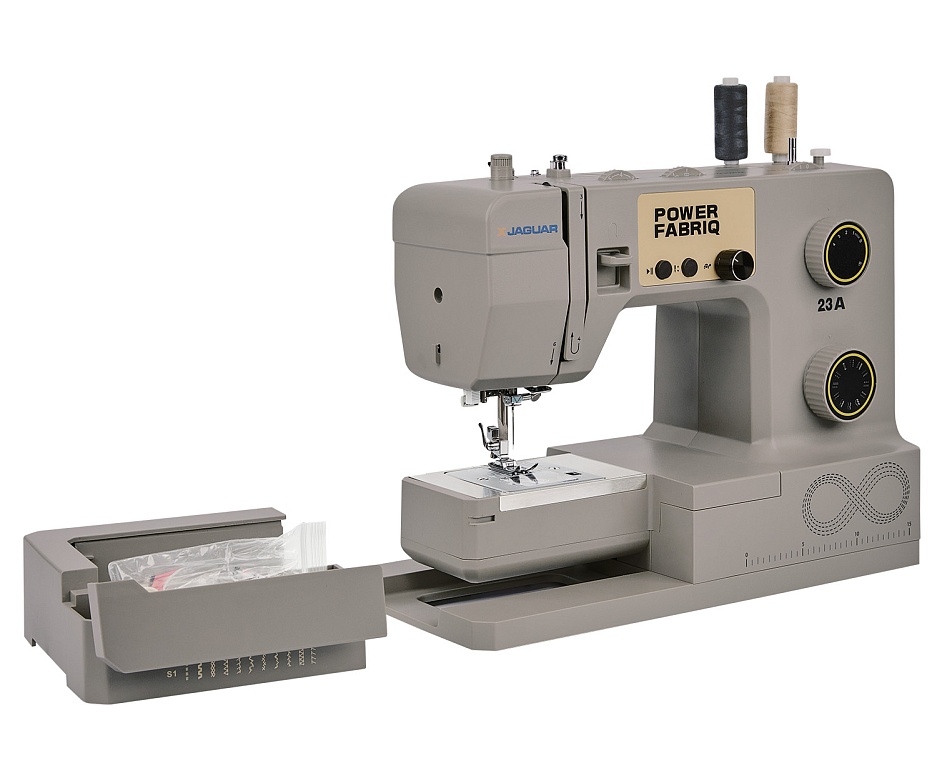

The free arm is used for sewing small parts, cuffs, trouser legs, and children's clothing. The presser feet are stored in the compartment of the removable extension table.

The Japanese quality and style of the JAGUAR POWER FABRIQ 23A model will inspire you to create incredible ideas!

Functions

Main characteristics

• 23 sewing operations: utility, knit, overlock, elastic zigzag, blind, decorative, and quilting stitches.
• Buttonhole: automatic.
• Adjustable stitch length: up to 4 mm.
• Adjustable stitch width: up to 6 mm.
• Hook: horizontal rotary.
• Maximum presser foot lift: up to 9 mm.
• Feed dog: 7-segment.
• Maximum sewing speed: 800 stitches/min.

Sewing

• “Start/Stop” button — allows sewing without a foot controller.
• Needle positioning button — needle position up/down.
• Sewing speed regulator.

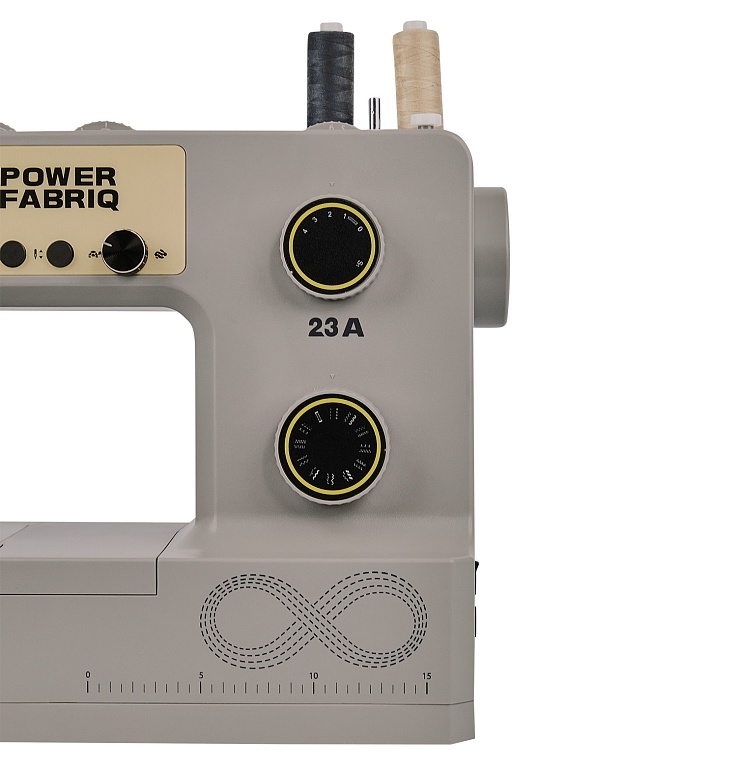

• Stitch selection regulator.
• Stitch length regulator.
• Stitch width regulator.
• Needle position regulator — center, right, or left.
• Buttonhole balance regulator.
• Presser foot pressure regulator.
• Upper thread tension regulator.
• Lower feed dog switch.
• Built-in needle threader.
• Built-in thread cutter.
• Reverse lever — reverse stitching and backstitching.
• Needle plate with linear markings.
• Enhanced needle penetration.
• One-touch presser foot change.
• Metal frame.
• Free arm.
• Removable extension table with an accessory compartment.
• Automatic needle bar lock when winding thread onto the bobbin.
• Built-in servo motor.
• Linear markings on the machine panel.

General functions

• Machine power consumption: 100 W.
• Manufactured in: China.
• Gross weight: 7.8 kg.

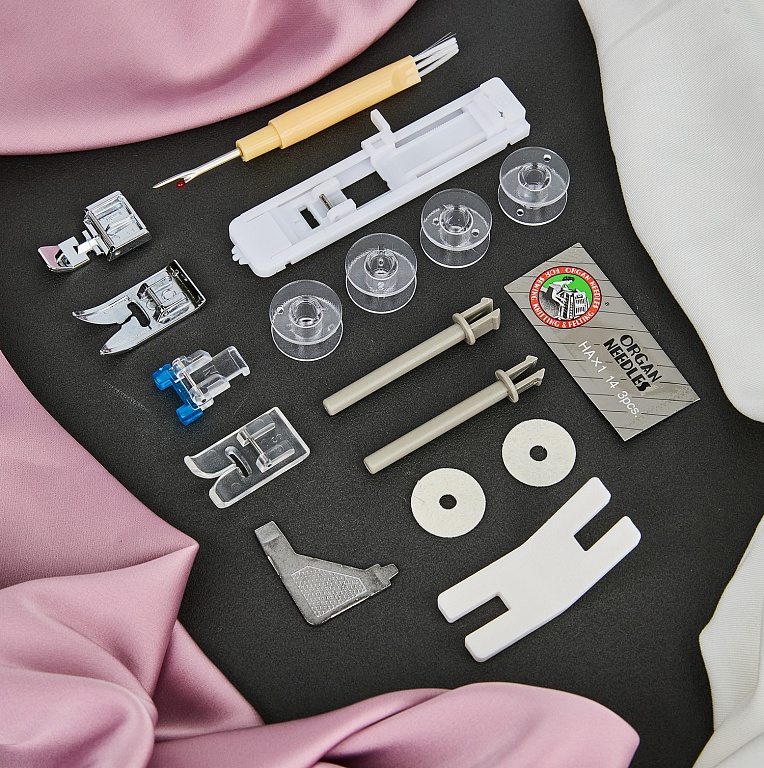

Accessories

Standard accessories:

• All-purpose presser foot.
• Zipper foot.
• Automatic buttonhole foot.
• Button sewing foot.
• Clear presser foot for decorative stitches.
• Plate attachment for difficult areas.
• Bobbin — 4 pcs. (3 pcs. + 1 in the machine).
• Seam ripper and dust brush.
• Two spool pins.
• Screwdriver.
• Felt pads — 2 pcs.
• Needles — 3 pcs.
